becoming interesting  8)

Here are a few LONG .30 Cal bullets I would like to try and obtain - to test further

Barnes 180gr

Barnes 190gr

Berger 215 gr

Sierra 195gr tmk

Nosler 210gr accubond long range

Swift Scirocco 180gr

Great project, well done.

Always refreshing to witness the ingenuity and determination of someone not satisfied with what everyone else is satisfied with, and make their own.

On a side note, the belt does not complicate the reloading process at all for me, I just ignore it. Size the fired case to fit the chamber as if there was no belt.

The short, fat cartridges do present a new set of challenges when reliable magazine feeding comes into play, especially when long for caliber, heavy bullets are used. Physical geometry of the cartridge together with the popular marriage to small actions make for interesting feeding problems.

Great project, well done.

On a side note, the belt does not complicate the reloading process at all for me, I just ignore it. Size the fired case to fit the chamber as if there was no belt.

The short, fat cartridges do present a new set of challenges when reliable magazine feeding comes into play, especially when long for caliber, heavy bullets are used. Physical geometry of the cartridge together with the popular marriage to small actions make for interesting feeding problems.

No sweat - a leade to the bullets I need would be appreciated

People have problems when the chamber is not cut correctly
IF head-spaced on the belt then the case can stretch to fit the shoulder to the "gap" in the chamber leading to case separation.
Nearly all of the "range-pickup" cases I have are swollen just ahead of the belt
IF head-spaced on the belt what use is the shoulder ?

"MAGNUM" marketing overcame all difficulties - and belted obsolescence

Short fat cartridges and feeding problems .. see it all the time on the YouTube channels

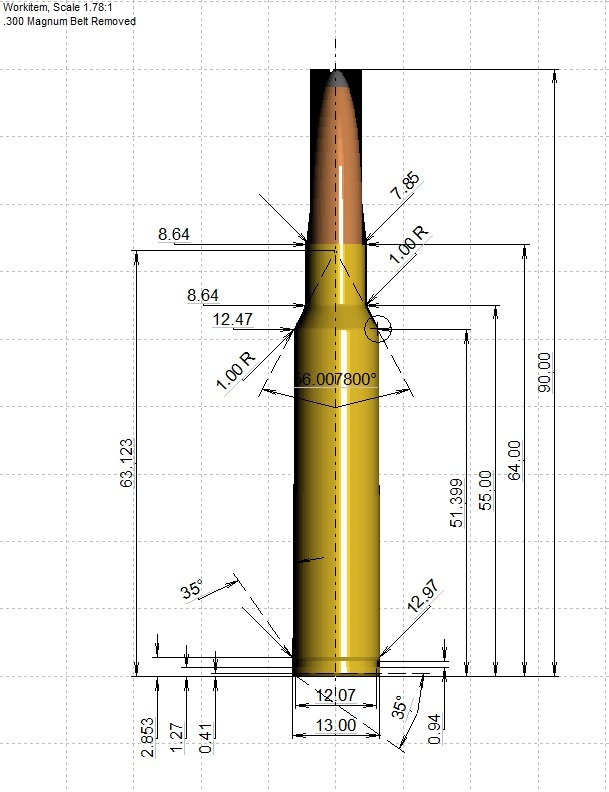

An update and final design:

COAL increased to 64mm / shoulder to 12.47mm / shoulder angle to 56deg

Few things to check before making / machining a body die to form cases and send to reamer maker
( Working backwards )

Match chamber and dies so brass is worked as little as possible

Take down 30-06 barrel can be re-chambered to test - before getting a brand new barrel

Will achieve slightly slower but similar velocities to Newton with less powder

Now it looks just like a 30 Newton.

Now it looks just like a 30 Newton.

Yes close but not the same
Original 30 Newton brass can be obtained ( when a batch is run ) - at about US$5.00 a case
My whole raison d'etre for this development is that 300WM brass is readily available and "cheap"
Then there is the license aspect as well - and another rifle / barrel / change cartridge / calibre ...

Useable case capacities in gr H2O:

Given are approximate case capacities, in grains of water to fill the case to the mouth
Dependent on maker of cartridge case brass

• 7mm Rem Mag                84gr
• 30 Newton                        88gr
• 300 Win Mag                    89gr
• 338 Win Mag                    86gr
• 308 Norma Magnum          88gr
• Mine                                87gr

Cartridge Case Capacities

...Then there is the license aspect as well - and another rifle / barrel / change cartridge / calibre ...

You can license a new barrel for a rifle even if it's a different caliber, it goes on record as a second barrel for the same rifle.

Much less hassle.

You can license a new barrel for a rifle even if it's a different calibre, it goes on record as a second barrel for the same rifle.

Much less hassle.

*****************************************
I am confused - not being pedantic nor smart arse, genuine question.
Barrel - action - weapon.  Licence a barrel, yes, understood. Licence a barrel, yes understood. A combination of both is then a weapon . To licence a 2 nd barrel for that weapon = a two barrel weapon ?
Then if you have a action lying around, putting that barrel on it makes it a weapon for which u need a licence again.
If I break my action, I have a illegal barrel licenced as a weapon ? I can carry on with this ................
Is it all rather convoluted or am i reading it all wrong?

Theoretically, one buys a second, third and fourth set of barrels for a shotgun, then one has one set for trap, one for skeet, one 16ga for the missus, and one in .410 for the kids.

License them accordingly, and carry the correct licenses.

Similar with a rifle, although the change of barrels is more permanent unless it is designed to do so, like the Blasers.

...Then there is the license aspect as well - and another rifle / barrel / change cartridge / calibre ...

You can license a new barrel for a rifle even if it's a different caliber, it goes on record as a second barrel for the same rifle.

Much less hassle.

Yes ..
However how long does the licensing process take ?
How much is a new barrel blank / cutting threads / chambering etc ?
Far as I know HOWA does not provide fitted chambered barrels - only a barrelled action ?

I already have a HOWA 300 Win Mag ..with a 308 barrel - thus the use of and modification of the 300WM
It would be quite possible to have multiple barrels for the same action - for future wildcats
For when I am a millionaire ,,  🙂  ;D

I am confused - not being pedantic nor smart arse, genuine question.
Is it all rather convoluted or am i reading it all wrong?

I rather think the authorities consider the chambered barrel to be .. "THE weapon"  ?
In the "old-days"  far as I remember this was where the emphasis was - there was no noting EVERY part with a serial number / any number / mark ?

I am confused - not being pedantic nor smart arse, genuine question.
Barrel - action - weapon.  Licence a barrel, yes, understood. Licence a barrel, yes understood. A combination of both is then a weapon . To licence a 2 nd barrel for that weapon = a two barrel weapon ?
Then if you have a action lying around, putting that barrel on it makes it a weapon for which u need a licence again.
If I break my action, I have a illegal barrel licenced as a weapon ? I can carry on with this ................

You're overthinking it.

It's simple - you can license a second barrel for a rifle.

I think that's the mechanism in place for switch barrel rifles,  and the T/C variety, which you can make use of.

Yes ..
However how long does the licensing process take ?
How much is a new barrel blank / cutting threads / chambering etc ?
Far as I know HOWA does not provide fitted chambered barrels - only a barrelled action ?

The licensing process is the same.

A new barrel can cost as much as you wish to pay for it.

Add about 3k for chambering and threading, even if you provide the reamer.

There's no need to buy a Howa barrel, buy a barrel blank or get a barrel made, it can be threaded for a Howa action.

Buying a barrelled action is licensing a whole rifle. If you remove the barrel to use elsewhere, that is a completely different and complicated story to just licensing a new barrel.

Yes ..
However how long does the licensing process take ?
How much is a new barrel blank / cutting threads / chambering etc ?
Far as I know HOWA does not provide fitted chambered barrels - only a barrelled action ?

The licensing process is the same.

A new barrel can cost as much as you wish to pay for it.

Add about 3k for chambering and threading, even if you provide the reamer.

There's no need to buy a Howa barrel, buy a barrel blank or get a barrel made, it can be threaded for a Howa action.

Buying a barrelled action is licensing a whole rifle. If you remove the barrel to use elsewhere, that is a completely different and complicated story to just licensing a new barrel.

Yes licensing a new barrel and a change of calibre is from all the reports I have read a long wait nightmare ?
Only mentioned HOWA and barrel as that is what the action / receiver is - and the fact that they do not supply barrels
I understand about any other barrel blank from the other barrel makers
As I understand a new barrel ranges in price from approx R5,000 up to R9,000.00 even from SA manufacturers
Perhaps you know of somewhere cheaper ?
